Product Description

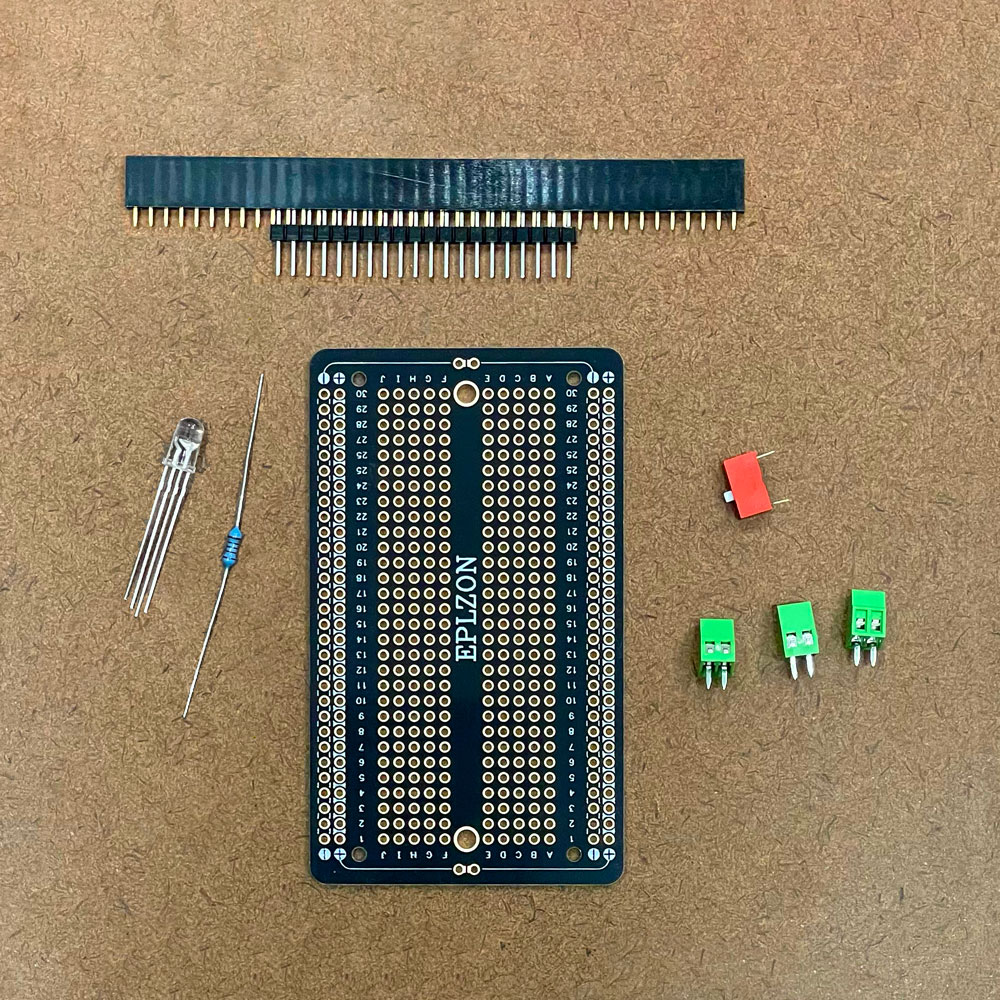

This PCB board is widely used in electronic experiments and point-to-point DIY soldering projects.
With the perfectly designed Pre-tinned holes on the board, you can easily install any necessary sensors and components.
Specification:
- Includes v2.x Components
- PCB type: Double-sided.
- Material: high-quality FR-4 glass fiber PCB.
- Surface: High-quality gold finish for easy soldering.
- Gold-plated finish to prevent oxidation.
- Color: Black
- Dimensions: 3.5″x2.05″ (88.9mm x 52.1mm)
- Through-hole diameter: 0.047″ (1.2mm).
- Mounting holes: M3 (Ø3.2mm) & M2 (Ø2.2mm).
- Trace width: 0.04″ (1mm).
